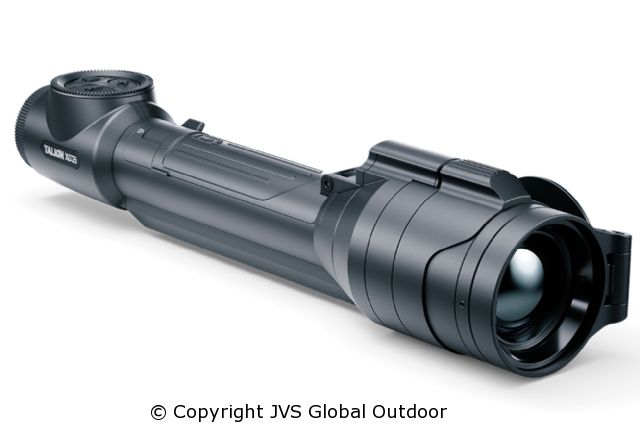

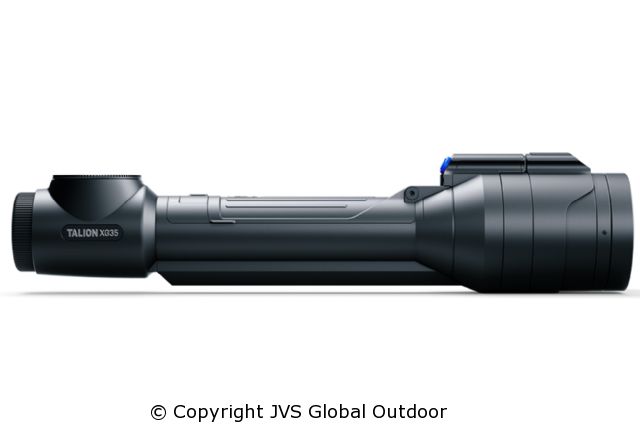

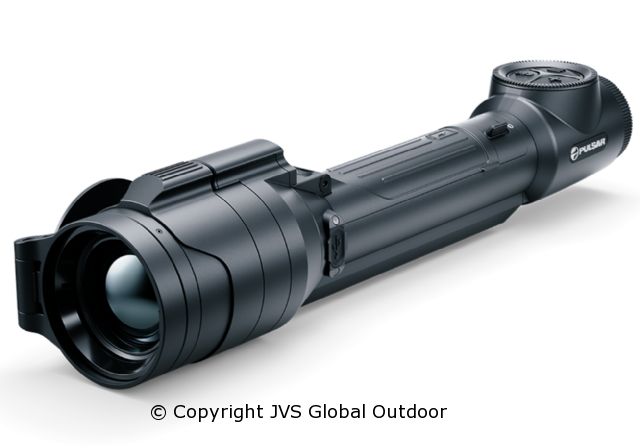

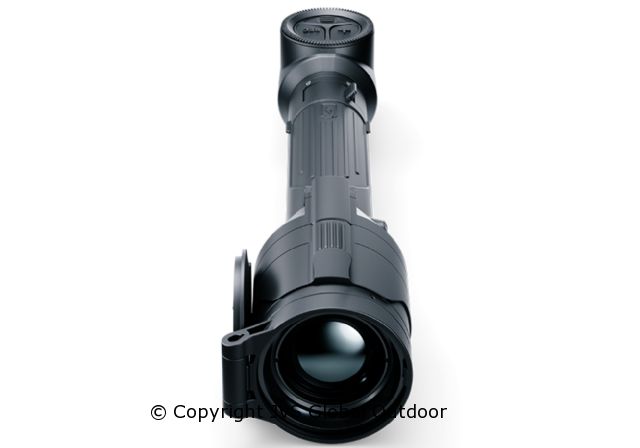

Pulsar Talion XG35
Long operation time on a single charge
Talion is powered with a Pulsar APS 5T interchangeable, rechargeable battery. A single charge guarantees up to 9 hours of battery life (Talion XQ series), which covers the time of active use of the scope for a hunt. The battery cover design helps to accurately determine the correct position and makes it possible to quickly replace a flat battery with a new one in complete darkness by touch alone.
Multi-point prism mount for precise positioning on a rifle
A mounting prism with multiple screw points to ensure flexibility and convenience when installing a Talion riflescope on various types of rifles. During installation the user can shift the scope along the rifle to the most comfortable viewing position.

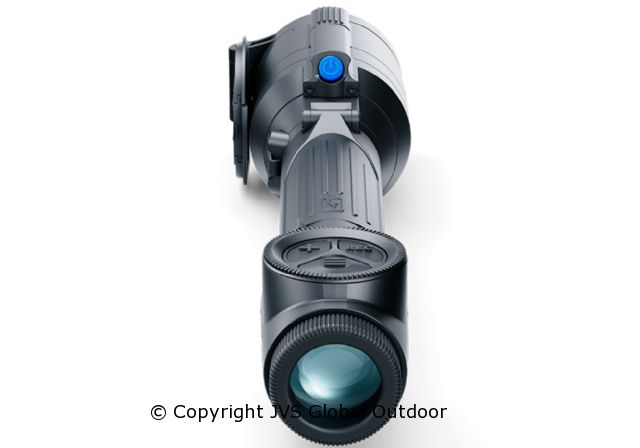

All control elements in direct access
All Talion riflescope controls are placed on the top panel of the eyepiece to simplify access and for the convenience of both right- and left-handed users.
Rapid battery extraction mechanism
Unique battery cover design with rapid extraction lock ensures fast and flawless battery replacement. Releasing the lock opens and raises the battery cover at the top of the riflescope’s housing for quick access to rechargeable battery.
Focus adjustment with tactile marker set for night-time shot
The precise focusing adjustment has an integrated fin lever that is set to match the protruding ridge on the housing of Talion riflescope when focusing reaches 70 m (76 yd) mark, the night-time shooting distance. This enables quick and correct focusing, even without looking at the riflescope.
More sensitive than ever...
3 sensitivity amplification levels
Selection of the signal amplification level combined with new filtration algorithms with fine brightness and contrast adjustments offers the hunter great opportunities for long-range detection of game under diverse weather and temperature conditions. The amplification setting helps to define an animal’s trophy features and ensures clear rendering of objects and background in the field of view.
Lightweight and rugged magnesium alloy housing
The Talion’s housing is made of magnesium alloy to ensure great structural strength and retain a light weight. The robust and lightweight metal housing serves also as a heat sink extracting the warmth generated by inner electronics thus making thermal imaging device more sensitive.
Photo and video recording
Keep the best moments of observation and share them with your friends and hunting colleagues. One touch of a button is enough to capture an interesting moment or start recording video. 16 GB of internal memory enables recording many hours of video and tens of thousands of photos.
Wi-Fi integration with iOS and Android devices. Stream Vision 2 application
The built-in Wi-Fi module will connect the device with smartphones based on Android and iOS via the Stream Vision 2 mobile application. This combination provides a great opportunity, such as wireless updating of the device software, transmission of images to a mobile device screen in real time, remote control of digital functions and many others. Users registered in the application are provided with cloud storage space for photos and videos taken with a digital or thermal imaging device.
Waterproof IPX7 housing
With an IPX7 waterproof rating, Talion riflescopes work in conditions of high humidity and heavy rain and can withstand half an hour immersion under water to a depth of 1 meter.
High calibre recoil resistance: 12 gauge, 9.3x64, .375H&H
Talion thermal riflescopes are high impact resistant and can be used with rifled hunting weapons with calibres of 9.3x64, .30-06, .300, .375H&H, etc., as well as with smooth-bore and pneumatic weapons.
5 shooting profiles / 50 zeroing distances
Zeroing settings are saved in a shooting profile. Talion memory contains up to five shooting profiles for several types of weapons or cartridges. Each profile can hold up to ten zeroing distances.
A selection of 10 reticle shapes in 9 colour modes
A reticle is electronically displayed in the same plane as the target. The Talion memory contains ten reticle configurations and functions (direct shot type, ballistic, scalable and regular), all available in nine colour options.
Precision aiming in the “Picture-in-picture” mode
The “Picture-in-picture” function enables the shooter to display a high-precision zeroing frame. Taking only 10% of the total display area, the frame shows a magnified image of the target and reticle and allows the user to closely see the image in the aiming area and have visual control of the entire field of view at the same time.
Variable colour palettes
A choice of 8 colour palettes lets the user observe their field of view more effectively, allowing them to optimise the unit for specific tasks and react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, and Rainbow and Ultramarine help increase chances for recognition & identification. Red Monochrome, Sepia and Violet are best suited to long-range observation at night.
Mounts
Talion riflescopes come in 4 versions:
• Without the mount
• Equipped with the Weaver U Mount
• Equipped with the Weaver USQD Mount
• Equipped with the Weaver LQD Mount
Specifications
Main
Sensor
640x480 @ 12 µm (NETD <40 mK)
Objective lens
F35 / 1.0
Magnification, x
2 – 16 (x8 zoom)
Field of view (HxV), degrees / m@100m
12.5x9.4 / 21.9x16.5
Detection range, m
1750
Sensor
Type
uncooled
Resolution, pixels
640x480
Pixel pitch, µm
12
NETD, mK
< 40
Frame rate, Hz
50
Optics
Objective lens
F35 / 1.0
Magnification, x
2 – 16
Field of view (HxV), degrees / m @ 100 m
12.5x9.4 / 21.9x16.5
Eye relief, mm
50
Display
Type
AMOLED
Resolution, pixels
1024х768
Range Performance
Detection range, m
1750
Laser Rangefinder
Safety class for laser equipment according to IEC 60825-1:2014
-
Wavelength, nm
-
Max. measuring range, m
-
Measurement accuracy, m
-
Reticle
Click value, H/V, mm at 100 m
21 / 21 (on minimum magnification)
Click range, H/V, mm at 100 m
4200 / 4200
Number of preloaded reticles
-
Video Recorder
Video / photo resolution, pixel
1024x768
Video / photo format
.mp4 / .jpg
Built-in memory, GB
16
Wi-Fi
Wireless Protocol
Wi-Fi
Wireless Standard
IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz
2.4 / 5
Environmental Characteristics
Degree of protection, IP code (IEC60529)
IPX7
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Compatible mounts
Weaver U Mount, Weaver USQD Mount, Weaver LQD Mount
Supported Application
Stream Vision 2
Power Supply
Output voltage, V
3.0 – 4.2
Battery type
APS 5T
Capacity, mAh
4900
Operating time on battery pack (at t=22°C), h *
7
External power supply, V
5 V, 9 V (USB Type-C Power Delivery)
Weight & Size
Body material
Magnesium alloy
Dimensions, mm
330x57x67
Weight, kg
0.7 (without APS 5T battery)
Trade Data
SKU (Model #)
76563
Status
production
