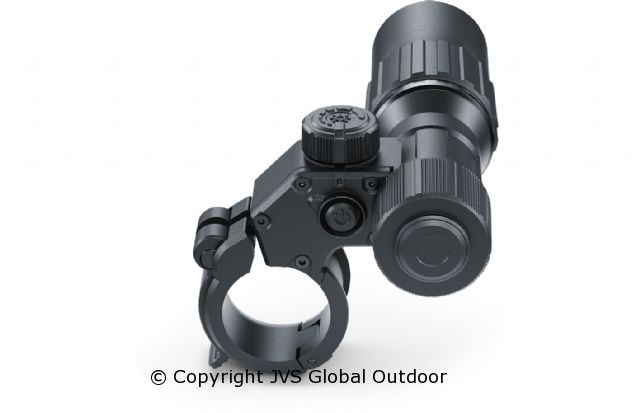

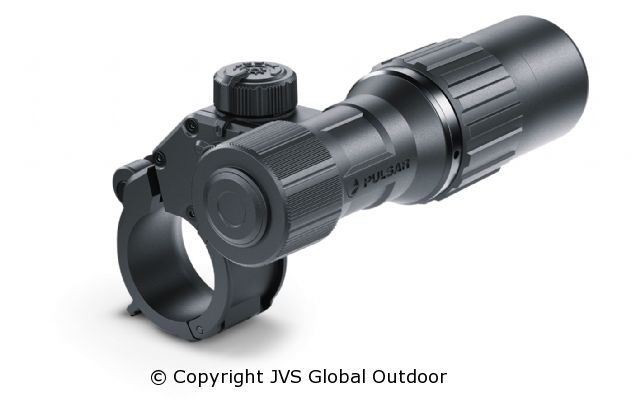

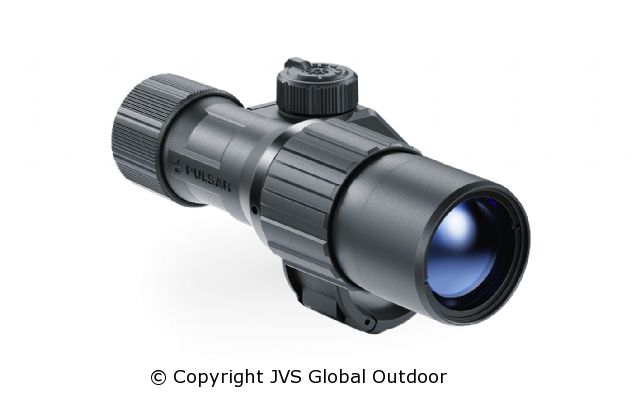

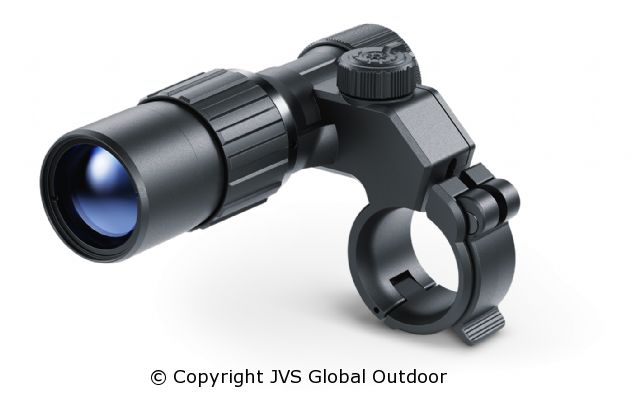

Pulsar Digex X850S IR
Interchangeable infrared illuminators for Digex digital night vision riflescopes. Smooth power adjustment. Adjustable IR spot position. Mounting diameter 30 mm.
Infrared Illuminator
Emitter
LED
IR wavelength, nm
850 (long-range)
IR Optical power, mW
up to 800m
Environmental Characteristics
Degree of protection, IP code (IEC60529)
-
Operating temperature range, °С
-25 – +50
Connections and Compatibilities
Max. recoil power on rifled weapon (Eo), Joules
6000
Shock resistance on the smooth-bore rifles, caliber
12
Mount, type
quick-release 30 mm ring
Power Supply
Output voltage, V
3.0 - 4.2
Battery type
Li-Ion Battery Pack APS2
Capacity, mAh
2000
Operating time on battery pack (at t=22°C), h *
7
Weight & Size
Body material
-
Total length, mm
-
Dimensions, mm
129x84x75
Weight, kg
0.14
Trade Data
SKU (Model #)
79077
Status
-
